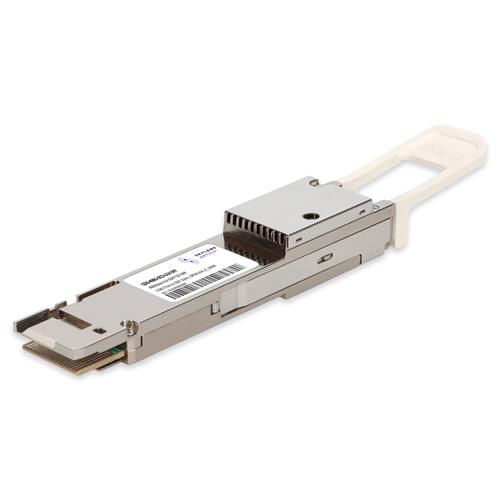

Picture of MSA Compliant 400GBase-Open ULH Coherent QSFP-DD Transceiver (SMF, 1528.77nm to 1567.13nm, 2400km, LC, DOM)

MSA Compliant 400GBase-Open ULH Coherent QSFP-DD Transceiver (SMF, 1528.77nm to 1567.13nm, 2400km, LC, DOM)

QDD-400G-DCO-ULH-SKY

This MSA compliant QSFP-DD transceiver provides 400GBase-Open ULH throughput up to 120km over single-mode fiber (SMF) using a wavelength of 1528.77nm to 1567.13nm via an LC connector. It can operate at temperatures between 0 and 75C. All of our transceivers are built to comply with Multi-Source Agreement (MSA) standards and are uniquely serialized and tested for data-traffic and application to ensure seamless network integration. Additional product features include Digital Optical Monitoring (DOM) support which allows access to real-time operating parameters. We stand behind the quality of our products and proudly offer a limited lifetime warranty.

Data Sheets
Technical Specifications
Compatible OEM:MSA Compliant
Connector:LC
DOM:DOM
Environment:0 to 70°C
Form Type:QSFP-DD
Media:SMF
Reach:2400km
Speed:400GBase
Speed Description:400-Gigabit
Transceiver Type:DCO
Wavelength:1528.77nm to 1567.13nm
Product Shipping Dimension(HxWxD):1.2 in. x 2.75 in. x 4.75 in.
Product Shipping Weight(LB):0.4
ECCN:5A991
HTS-Harmonized Code (UK):85176200
HTS-Harmonized Code (US):8517.62.0090
UNSPSC Code:43201553
What's In The Box:1x transceiver
